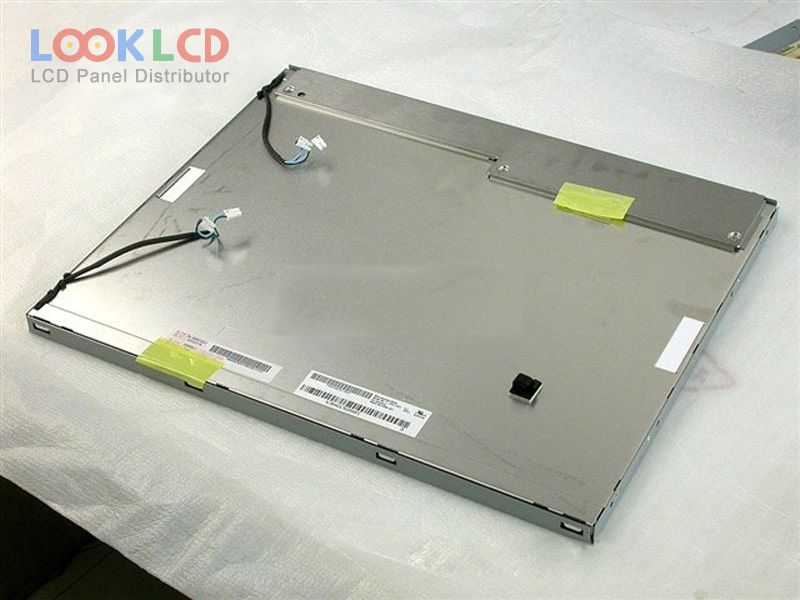

| Číslo dielu | M190EN04 V1 |
| Značka | AUO |
| Veľkosť | 19.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 450:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | M190EN04 V1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 19.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 376.32×301.056 mm |
| obrys | 396×324×18 mm |
| povrch | Glare (Haze 0%), Hard coating (2H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 450:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193172% |
| Doba odozvy | 3.6/8.4 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/70/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
