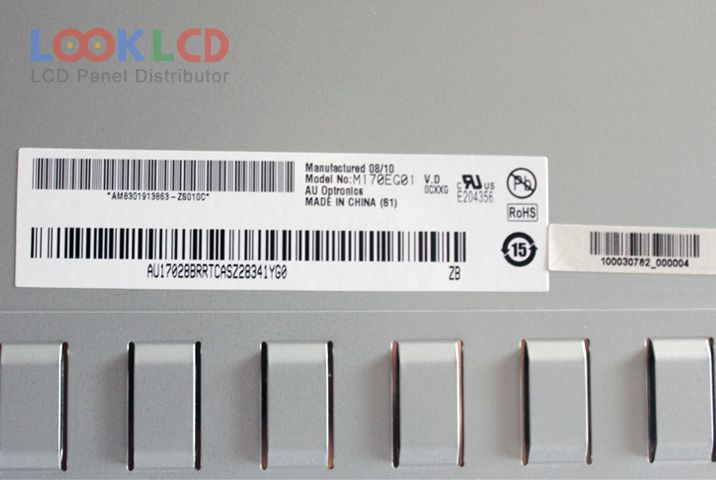

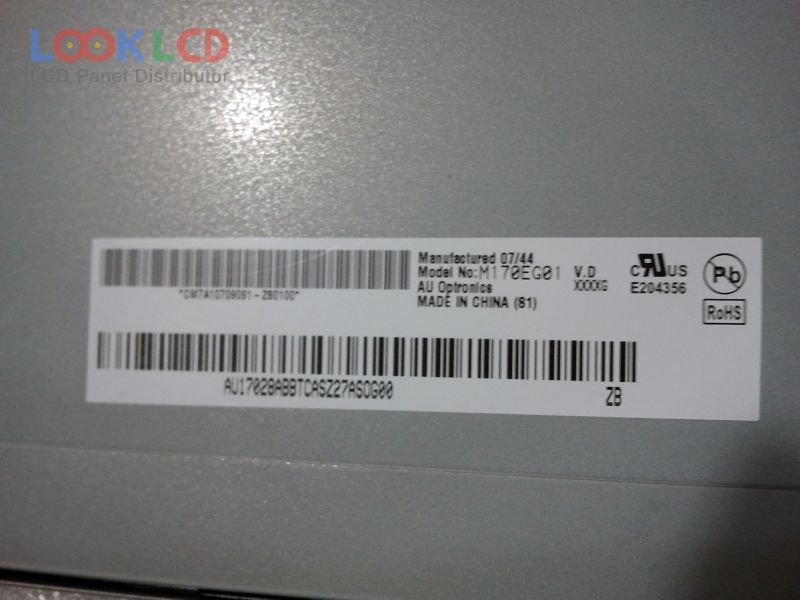

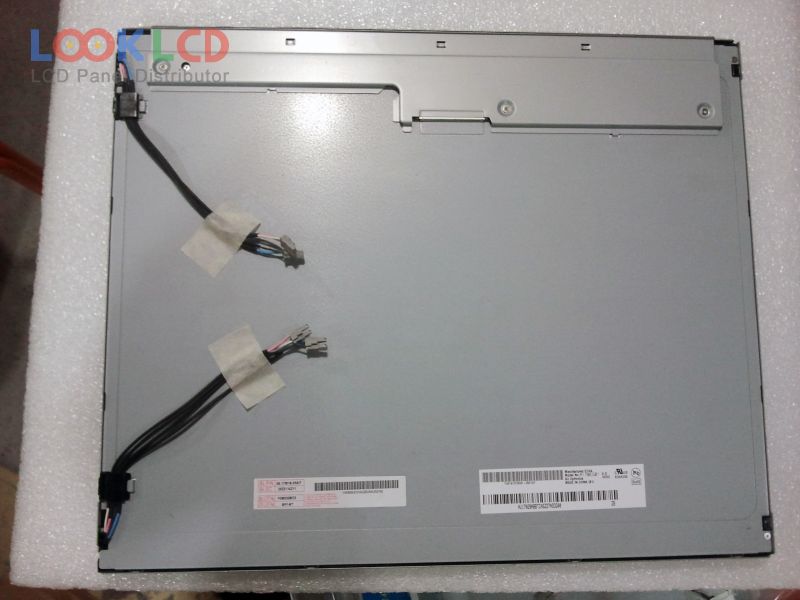

| Číslo dielu | M170EG01 VD |
| Značka | AUO |
| Veľkosť | 17.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1280×1024 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 1000:1 |
| Farby | 16.2M |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | M170EG01 VD |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 17.0 inch |
| rozhodnutie | 1280(RGB)×1024 , SXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 337.92×270.336 mm |
| obrys | 358.5×296.5×15.8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + FRC), CIE193172% |
| Doba odozvy | 3.5/1.5 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 4 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
