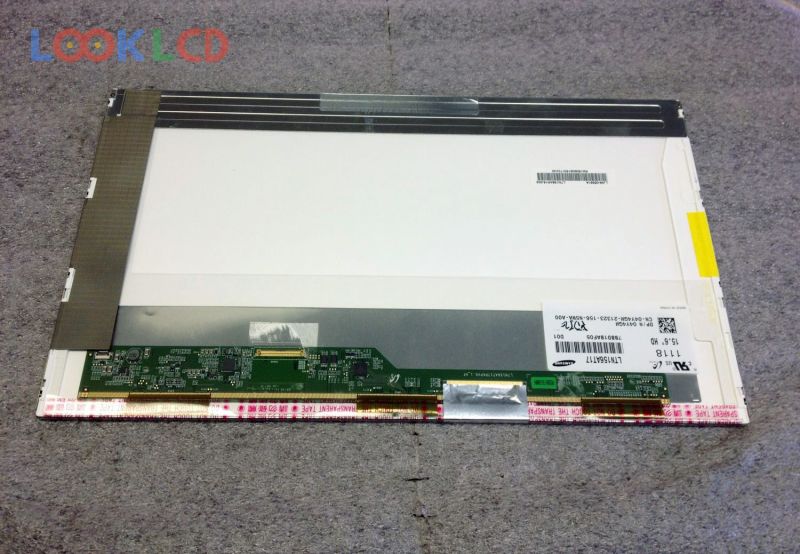

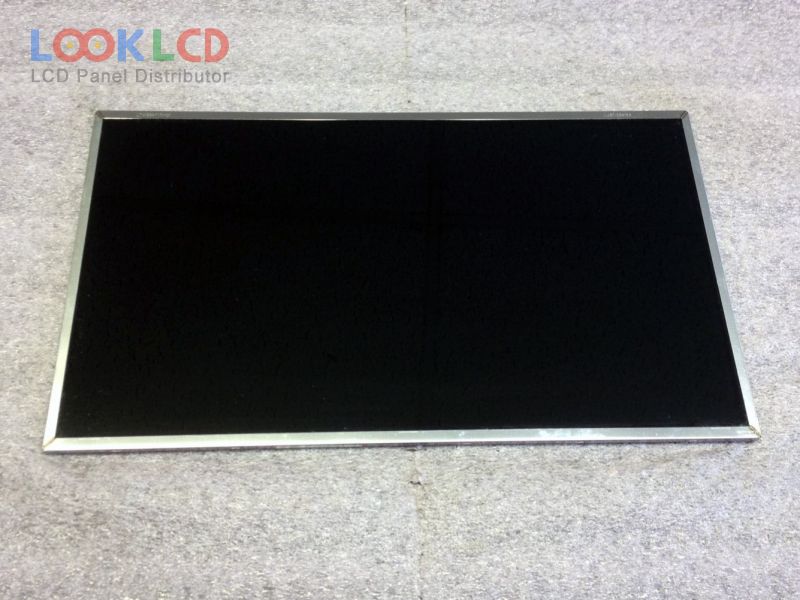

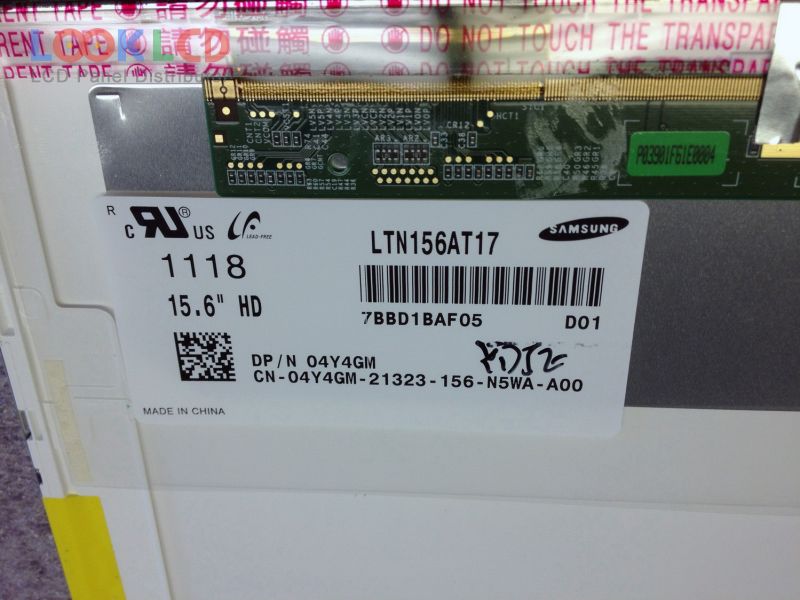

| Číslo dielu | LTN156AT17-D01 |
| Značka | Samsung |
| Veľkosť | 15.6 |
| Aplikácia | NBPC |
| Rozhodnutie | 1366×768 |
| Zloženie | LCM |
| Jas | 220 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | SAMSUNG |
| panelový model | LTN156AT17-D01 16 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1366(RGB)×768 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.232×193.536 mm |
| obrys | 359.3×209.5×5.5 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H) |
| jas | 220 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Min.) |
| zobraziť farby | 262K (6-bit), CIE193160% |
| Doba odozvy | 16 (Typ.)(Tr+Td) |
| pozorovací uhol | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S4PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
