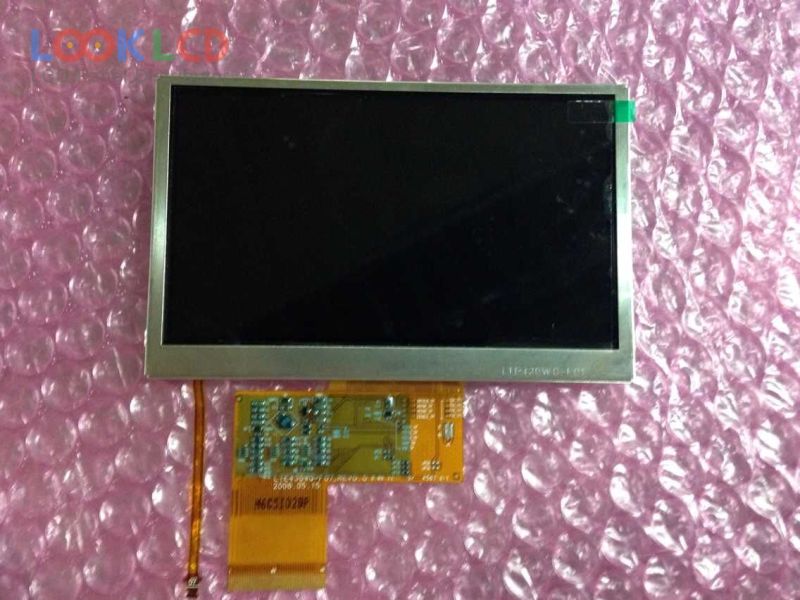

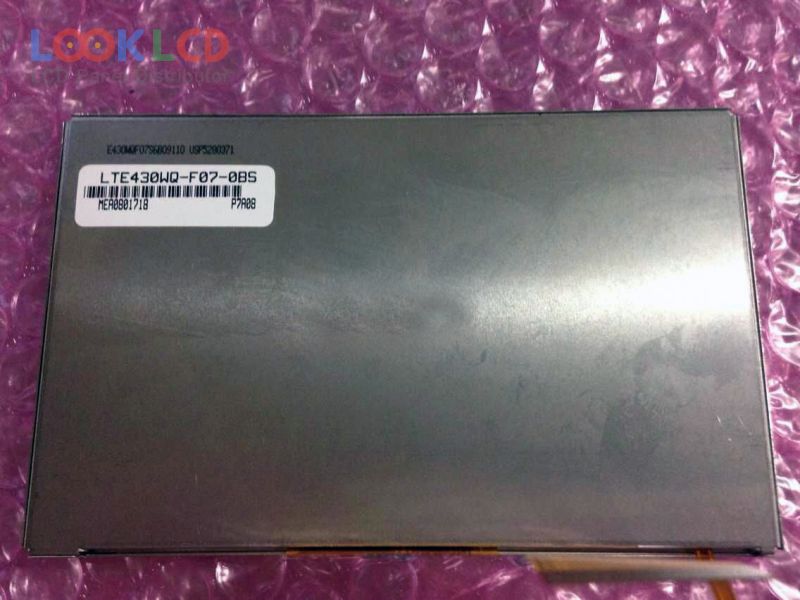

| Číslo dielu | LTE430WQ-F07 |
| Značka | Samsung |
| Veľkosť | 4.3 |
| Aplikácia | PND |
| Rozhodnutie | 480×272 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 400:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | SAMSUNG |
| panelový model | LTE430WQ-F07 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 4.3 inch |
| rozhodnutie | 480×272(RGB) , WQVGA |
| režim zobrazenia | TN, Normally White, TMR |
| aktívna oblasť | 95.04×53.856 mm |
| obrys | 105.5×67.2×4.15 mm |
| povrch | |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 400 : 1 (Typ.) |
| zobraziť farby | 16.7M (8-bit) |
| Doba odozvy | 5/25 (Typ.)(Tr/Td) |
| pozorovací uhol | 80/80/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S1PWLEDWithout Driver |
| signálové rozhranie | Parallel RGB (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.)(VDD) |
| aplikácie | PND |
