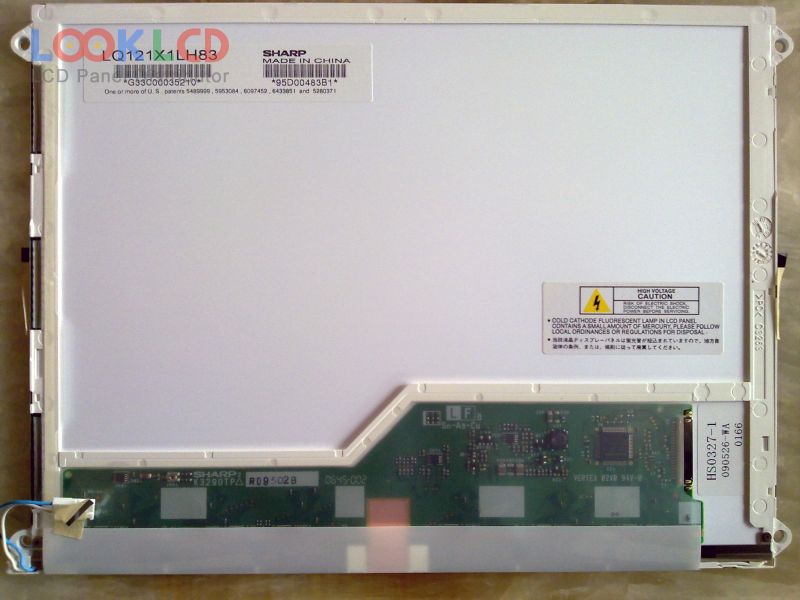

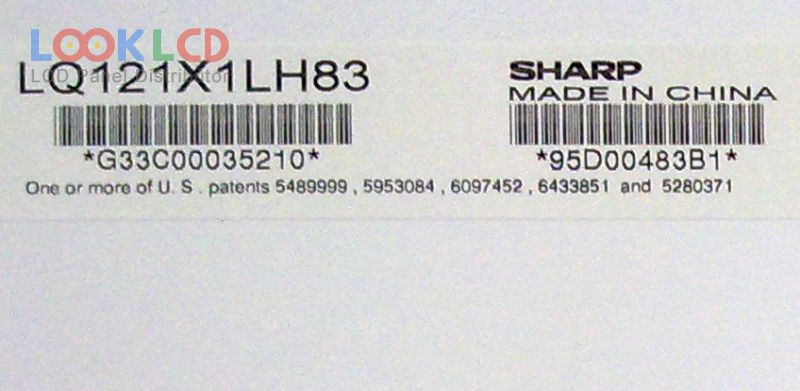

| Číslo dielu | LQ121X1LH83 |
| Značka | SHARP |
| Veľkosť | 12.1 |
| Aplikácia | NBPC |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 300:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | SHARP |
| panelový model | LQ121X1LH83 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 245.76×184.32 mm |
| obrys | 274.5×197.5×5.35 mm |
| povrch | Antiglare, Hard coating (2H), Antireflection |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 300:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 30 (Typ.)(Tr+Td) |
| pozorovací uhol | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
