| Číslo dielu | LM270WF5-SLA1 |
| Značka | LG Display |
| Veľkosť | 27.0 |
| Aplikácia | DMPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 250 |
| CR | 1000:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | LG Display |
| panelový model | LM270WF5-SLA1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 27.0 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | IPS, Normally Black, Transmissive |
| aktívna oblasť | 597.888×336.312 mm |
| obrys | 630×368.2×12.2 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 250 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Doba odozvy | 14 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 14S3PWLEDWithout Driver |

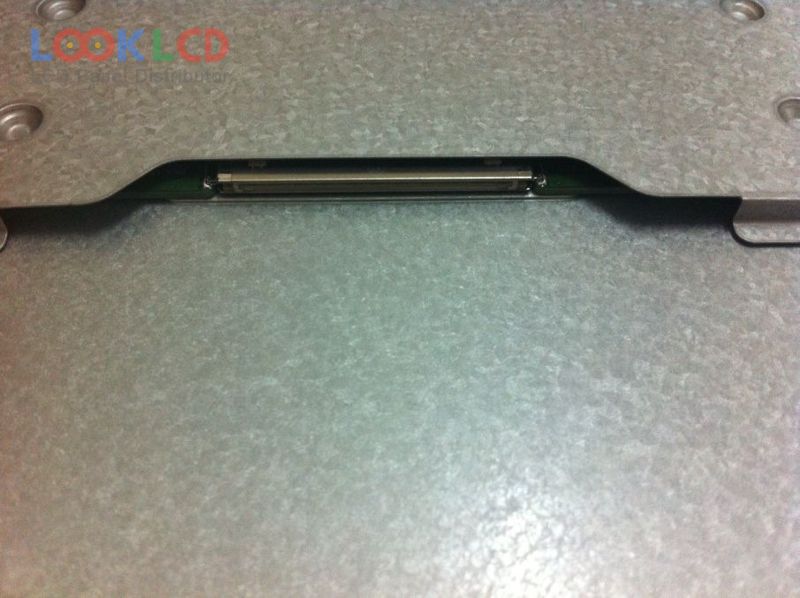

| signálové rozhranie | LVDS (2 ch, 8-bit), 30 pins |
| vstupné napätie | 5.0V (Typ.) |
| aplikácie | DMPC |
