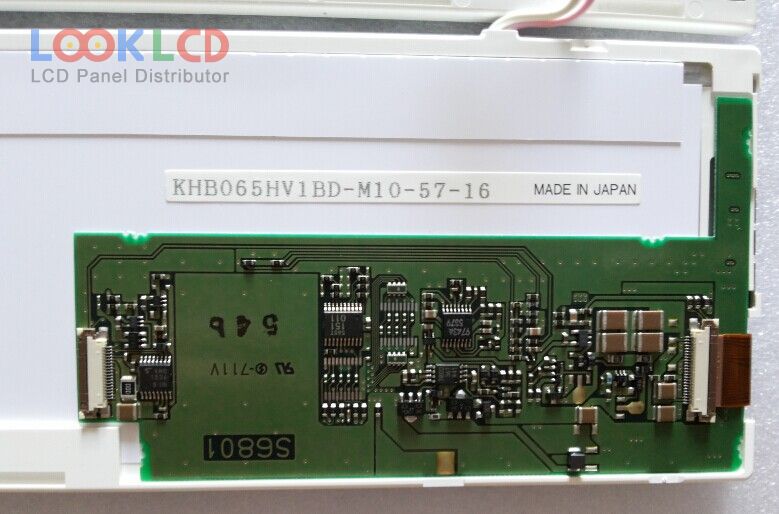

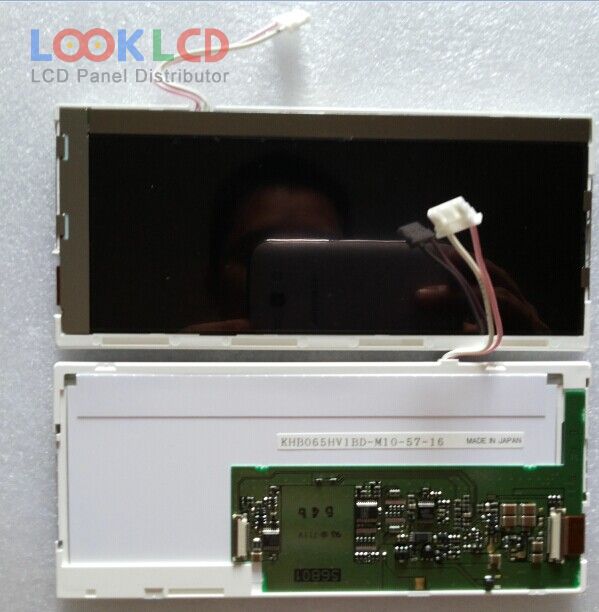

| Číslo dielu | KHB065HV1BD-M10 |
| Značka | Kyocera |
| Veľkosť | 6.5 |
| Aplikácia | IA |
| Rozhodnutie | 640×240 |
| Zloženie | LCM |
| Jas | |
| CR | 15:1 |
| Farby | Color |
| Podsvietenie | CCFL |
| Rozhranie | Parallel Data |
| značka panelu | Kyocera |
| panelový model | KHB065HV1BD-M10 |
| typ panelu | CSTN-LCD , LCM |
| veľkosť panelu | 6.5 inch |
| rozhodnutie | 640(RGB)×240 , HVGA |
| režim zobrazenia | STN, Normally Black, Transflective |
| aktívna oblasť | 153.58×57.58 mm |
| povrch | Glare (Haze 0%) |
| jas | |
| kontrastný pomer | 15:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| zobraziť farby | Color |
| Doba odozvy | 200/150 (Typ.)(Tr/Td) |
| pozorovací uhol | 50/50/30/40 (Typ.)(CR≥2)(L/R/U/D) |
| typ lampy | 1 pcsCCFL |
| signálové rozhranie | Parallel Data (8-bit), 18 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
