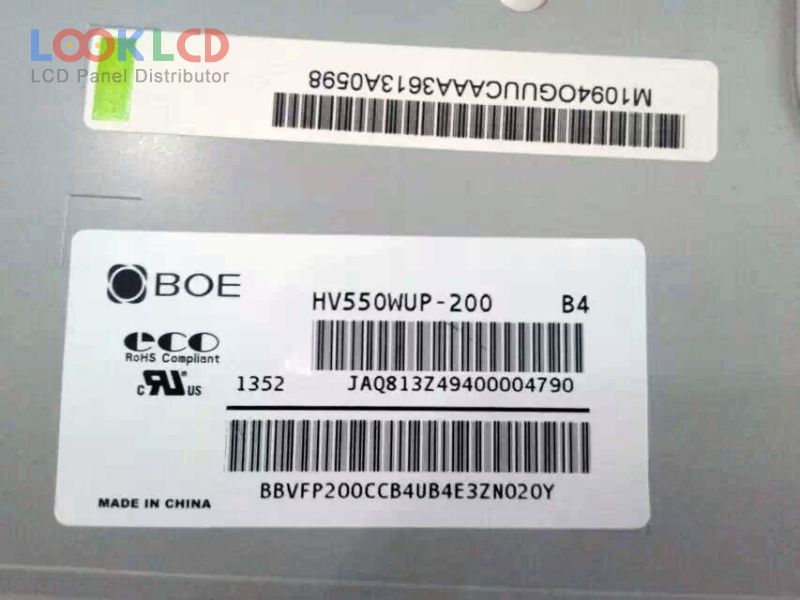

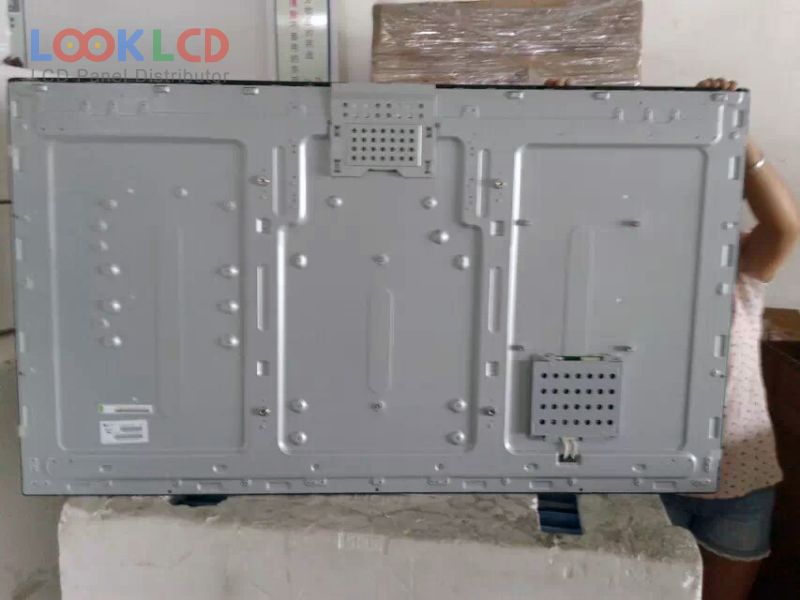

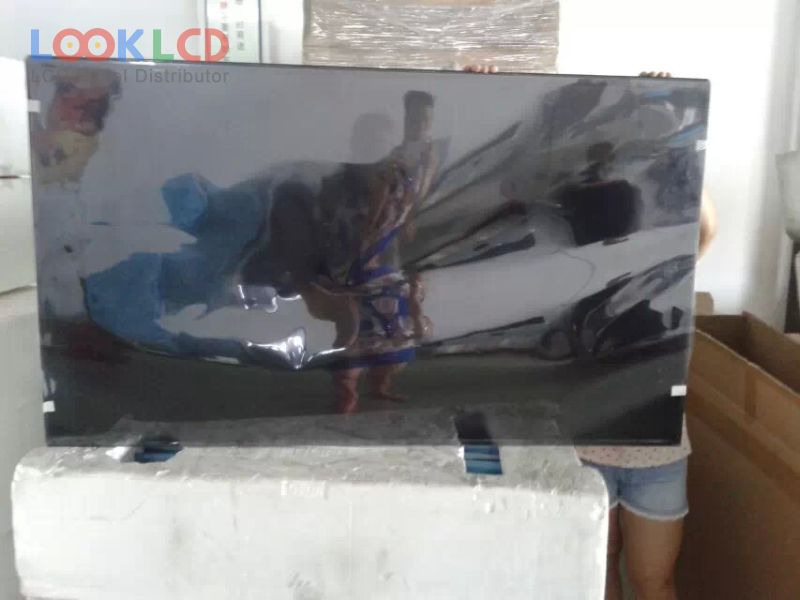

| Číslo dielu | HV550WUP-200 |
| Značka | BOE |
| Veľkosť | 55 |
| Aplikácia | LCTV |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 360 |
| CR | 1400:1 |
| Farby | 16.7M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | BOE |
| panelový model | HV550WUP-200 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 55 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | ADS, Normally Black, Transmissive |
| aktívna oblasť | 1209.6×680.4 mm |
| obrys | 1237.4×717.3 mm |
| povrch | Antiglare, Hard coating (2H) |
| jas | 360 cd/m² (Typ.) |
| kontrastný pomer | 1400:1 (Typ.) |
| zobraziť farby | 16.7M (8-bit), CIE193172% |
| Doba odozvy | 8 (Typ.)(G to G) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 10-bit), 51 pins |
| vstupné napätie | 12.0V (Typ.) |
| aplikácie | LCTV |
