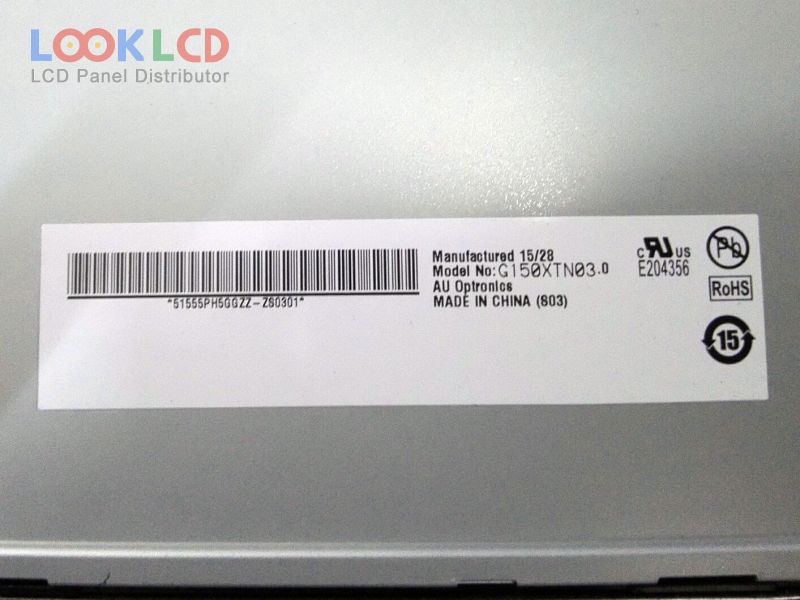

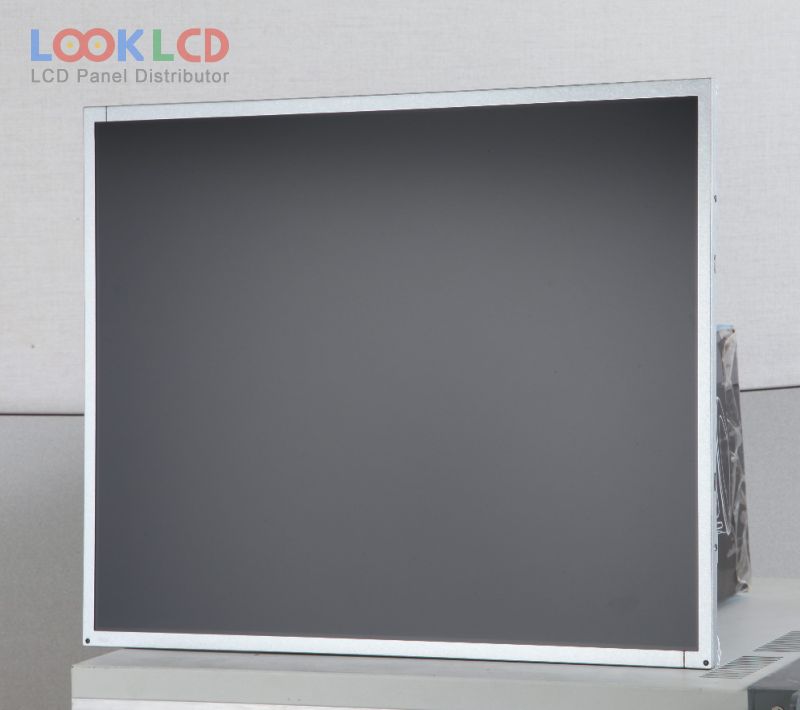

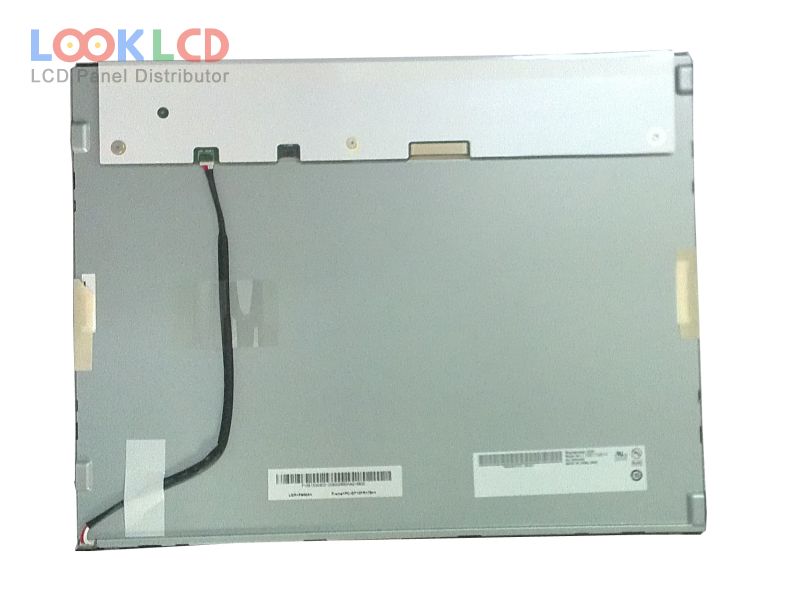

| Číslo dielu | G150XTN03.0 |
| Značka | AUO |
| Veľkosť | 15.0 |
| Aplikácia | IA |
| Rozhodnutie | 1024×768 |
| Zloženie | LCM |
| Jas | 350 |
| CR | 700:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | G150XTN03.0 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.0 inch |
| rozhodnutie | 1024(RGB)×768 , XGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 304.128×228.096 mm |
| obrys | 326.5×253.5×12 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 350 cd/m² (Typ.) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193160% |
| Doba odozvy | 5.7/2.3 (Typ.)(Tr/Td) |
| pozorovací uhol | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 20 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
