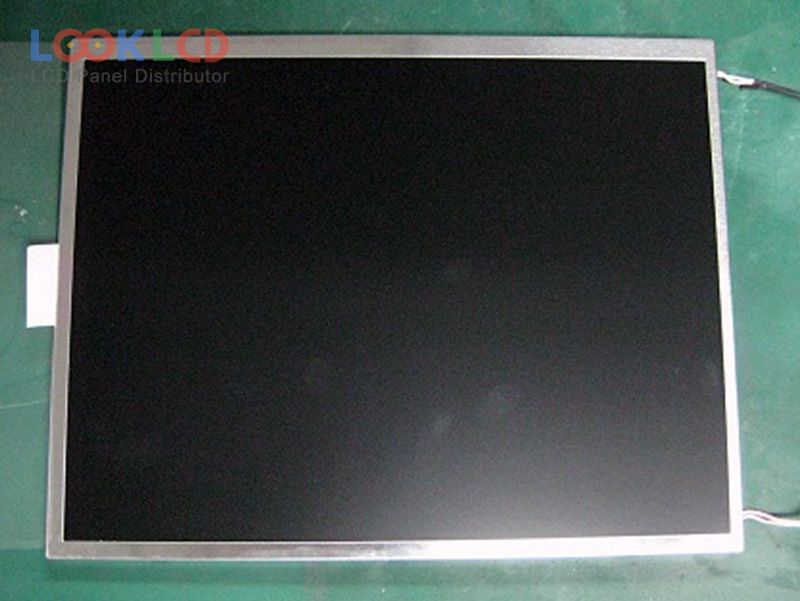

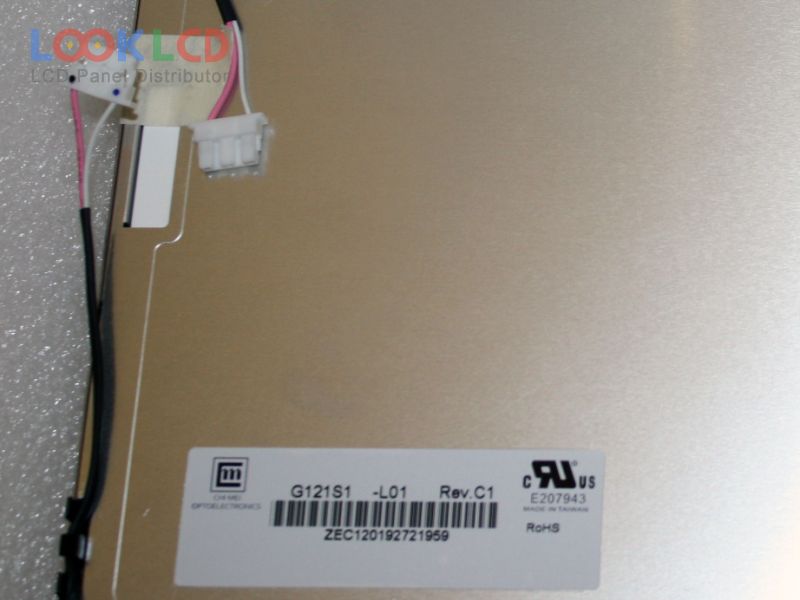

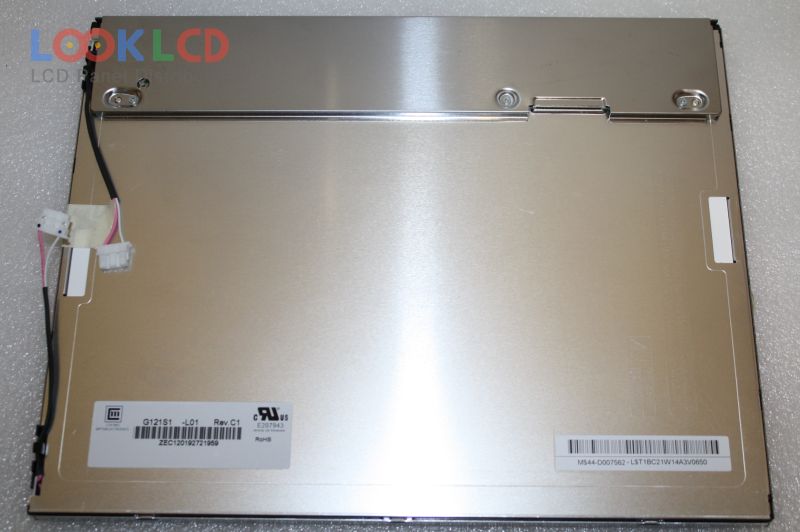

| Číslo dielu | G121S1-L01 |
| Značka | Innolux |
| Veľkosť | 12.1 |
| Aplikácia | CNS |
| Rozhodnutie | 800×600 |
| Zloženie | LCM |
| Jas | 450 |
| CR | 1000:1 |
| Farby | 262K |
| Podsvietenie | CCFL |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | G121S1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 800(RGB)×600 , SVGA |
| režim zobrazenia | Super MVA, Normally Black, Transmissive |
| aktívna oblasť | 246×184.5 mm |
| obrys | 260.5×204×12.7 mm |
| povrch | Antiglare (Haze 25%), Hard coating (3H) |
| jas | 450 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 262K (6-bit) |
| Doba odozvy | 13/12 (Typ.)(Tr/Td) |
| pozorovací uhol | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 2 pcsCCFLWithout Driver |
| signálové rozhranie | LVDS (1 ch, 6-bit), 20 pins |
| vstupné napätie | 3.3/5.0V (Typ.) |
| aplikácie | CNS |
