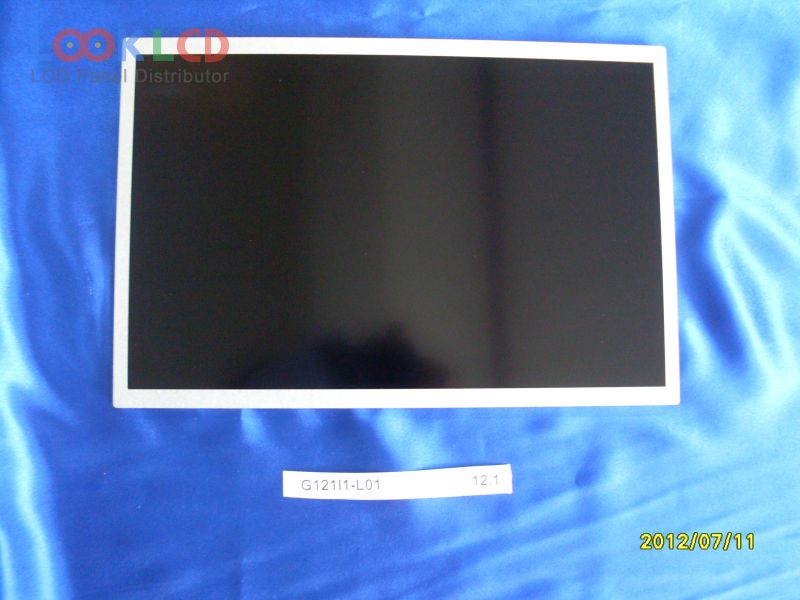

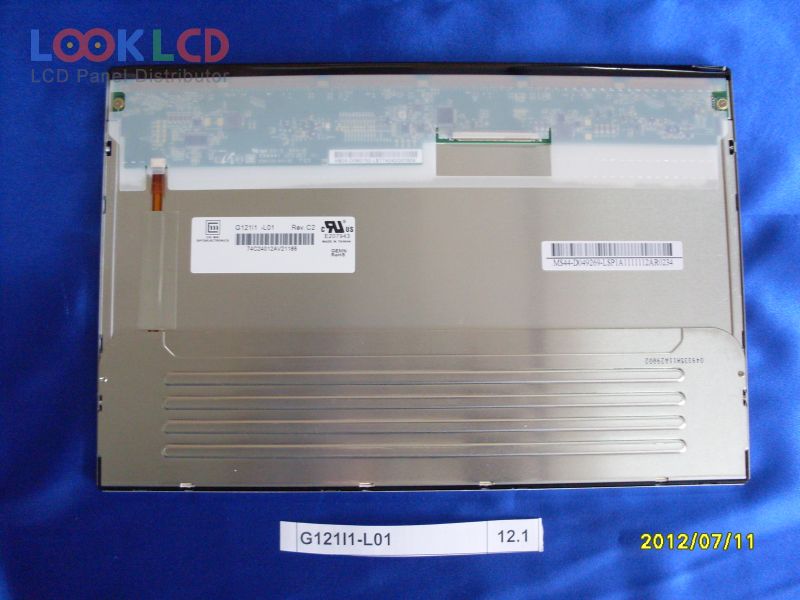

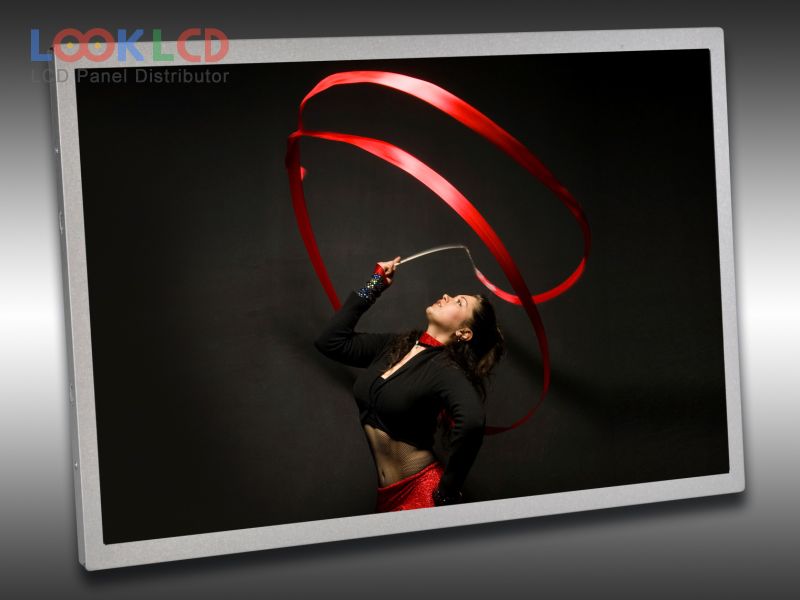

| Číslo dielu | G121I1-L01 |
| Značka | Innolux |
| Veľkosť | 12.1 |
| Aplikácia | IA |
| Rozhodnutie | 1280×800 |
| Zloženie | LCM |
| Jas | 400 |
| CR | 1000:1 |
| Farby | 262K/16.2M |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | CMO |
| panelový model | G121I1-L01 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 12.1 inch |
| rozhodnutie | 1280(RGB)×800 , WXGA |
| režim zobrazenia | MVA, Normally Black, Transmissive |
| aktívna oblasť | 261.12×163.2 mm |
| obrys | 278×184×10.5 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 400 cd/m² (Typ.) |
| kontrastný pomer | 1000:1 (Typ.) |
| zobraziť farby | 262K/16.2M (6-bit / 6-bit + FRC), CIE193145% |
| Doba odozvy | 15/10 (Typ.)(Tr/Tf) |
| pozorovací uhol | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 9S3PWLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 30 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
