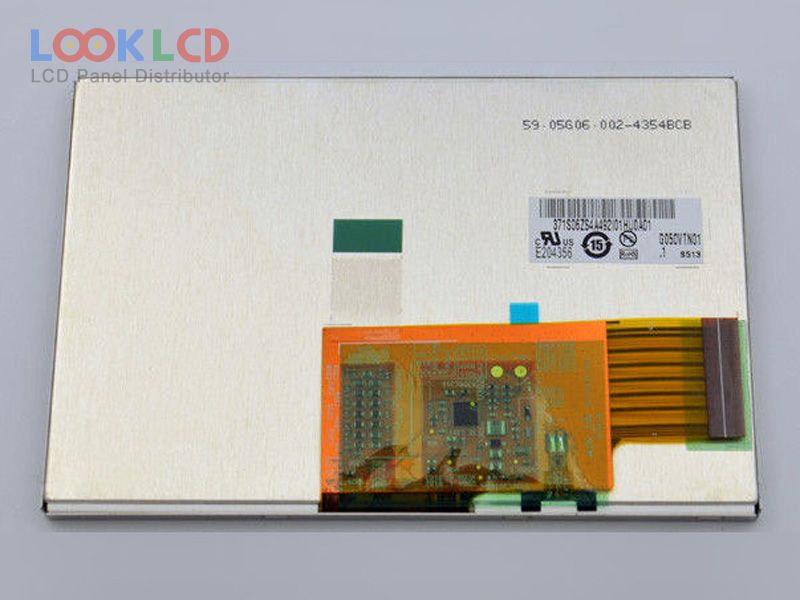

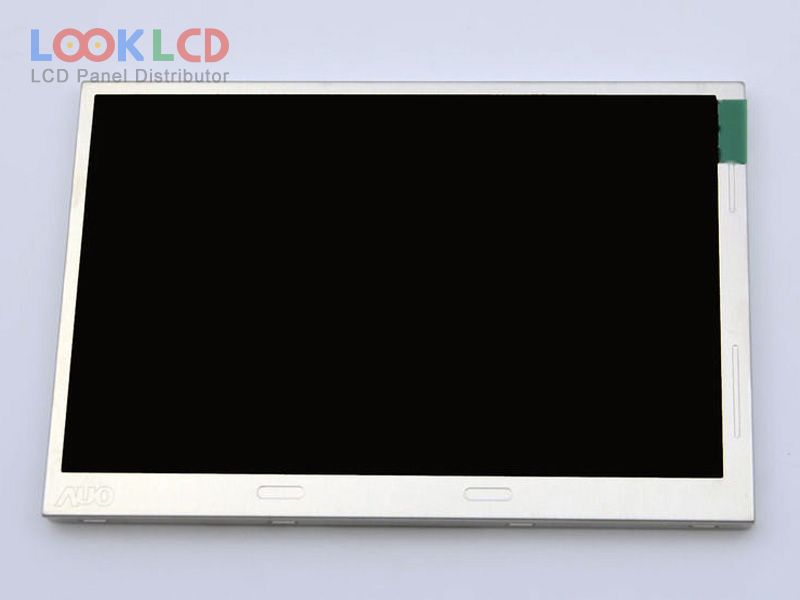

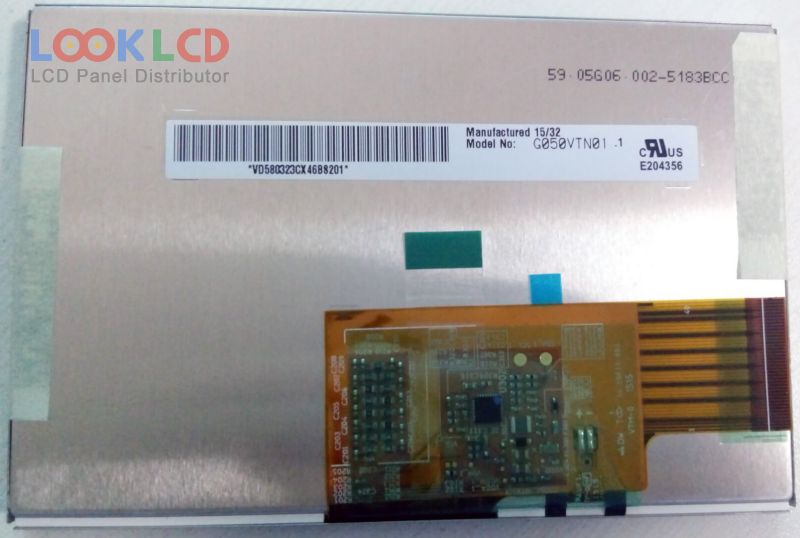

| Číslo dielu | G050VTN01.1 |
| Značka | AUO |
| Veľkosť | 5.0 |
| Aplikácia | IA |
| Rozhodnutie | 800×480 |
| Zloženie | LCM |
| Jas | 1000 |
| CR | 600:1 |
| Farby | 16.2M |
| Podsvietenie | WLED |
| Rozhranie | TTL |
| značka panelu | AUO |
| panelový model | G050VTN01.1 |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 5.0 inch |
| rozhodnutie | 800(RGB)×480 , WVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 108×64.8 mm |
| obrys | 119.33×79.18×8 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 1000 cd/m² (Typ.) |
| kontrastný pomer | 600:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + Dithering), CIE193150% |
| Doba odozvy | 20 (Typ.)(Tr+Td) |
| pozorovací uhol | 75/75/65/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | 7S2PWLEDWithout Driver |
| signálové rozhranie | TTL (1 ch, 8-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | IA |
