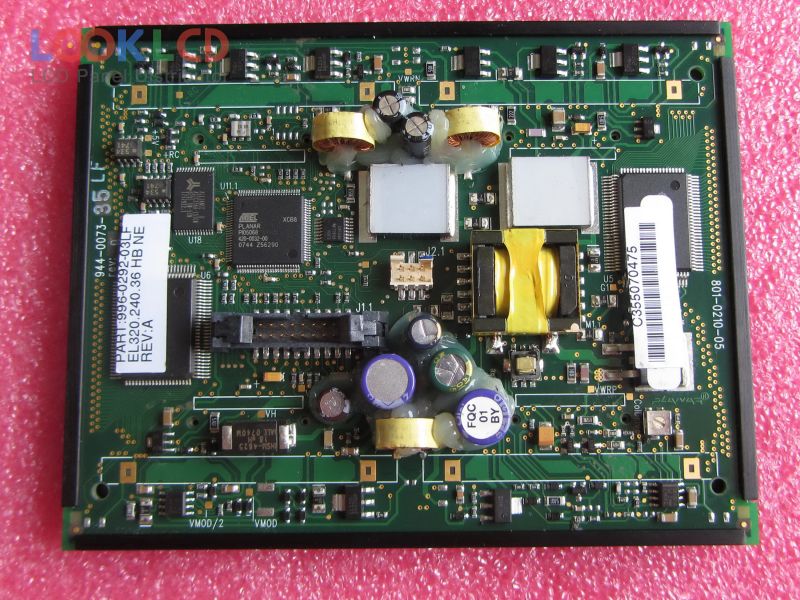

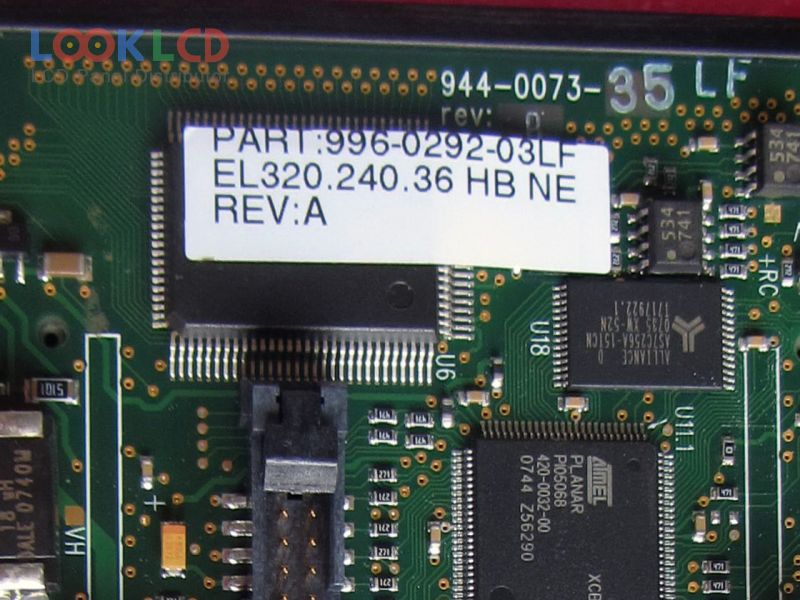

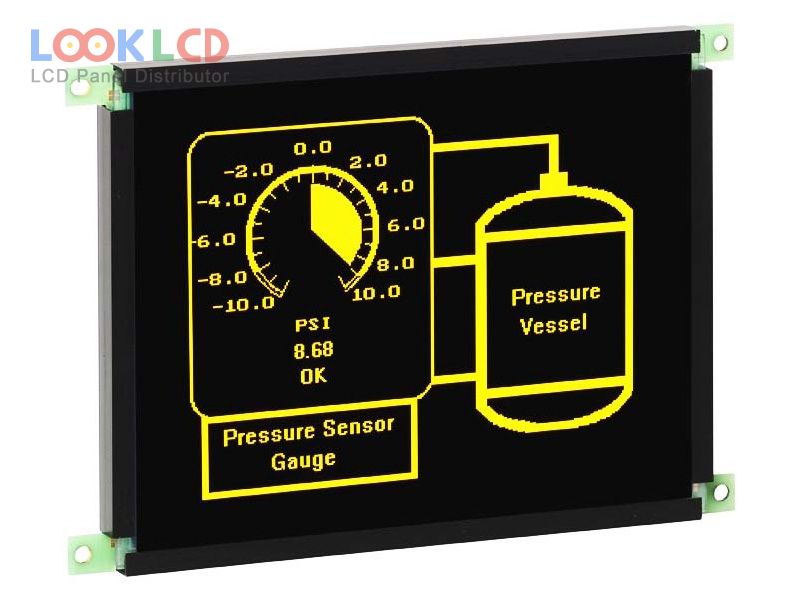

| Číslo dielu | EL320.240.36 HB NE |
| Značka | PLANAR |
| Veľkosť | 5.7 |
| Aplikácia | IA |
| Rozhodnutie | 320×240 |
| Zloženie | EL |
| Jas | 150 |
| CR | 90:1 |
| Farby | Mono(Yellow) |
| Podsvietenie | self |
| Rozhranie | Parallel Data |
| značka panelu | PLANAR |
| panelový model | EL320.240.36 HB NE |
| typ panelu | EL , EL |
| veľkosť panelu | 5.7 inch |
| rozhodnutie | 320×240 , QVGA |
| aktívna oblasť | 115.1×86.3 mm |
| obrys | 148.1×104.7 mm |
| povrch | |
| jas | 150 cd/m² (Typ.) |
| kontrastný pomer | 90 : 1 (Typ.) |
| zobraziť farby | Mono(Yellow) (1-bit) |
| pozorovací uhol | 89/89/89/89 (Typ.)(L/R/U/D) |
| frekvencia | 120Hz |
| signálové rozhranie | Parallel Data (1ch, 4-bit), 26 pins |
| vstupné napätie | 5/12V (Typ.)(VL/VH) |
| aplikácie | IA |
