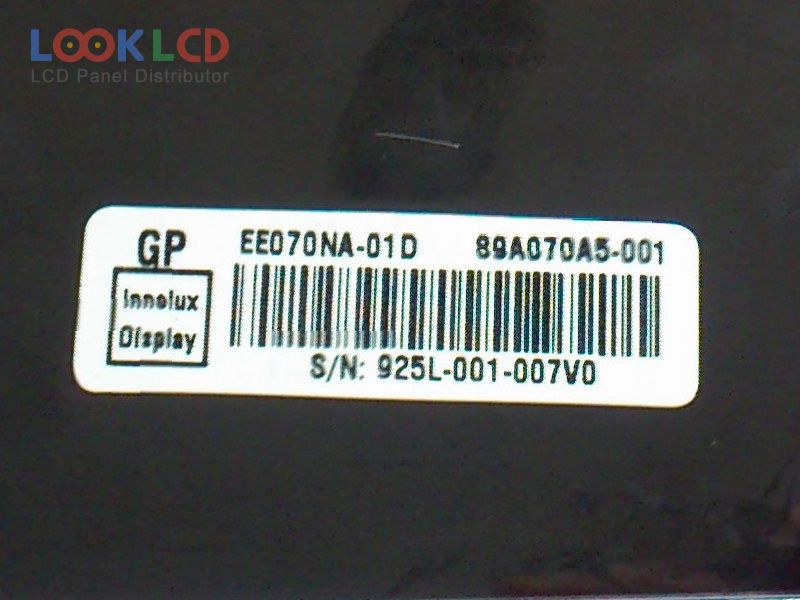

| Číslo dielu | EE070NA-01D |
| Značka | Innolux |
| Veľkosť | 7.0 |
| Aplikácia | MP4 |
| Rozhodnutie | 1024×600 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 700:1 |
| Farby | 262K/16.7M |
| Podsvietenie | No B/L |
| Rozhranie | LVDS |
| značka panelu | CHIMEI INNOLUX |
| panelový model | EE070NA-01D |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 7.0 inch |
| rozhodnutie | 1024(RGB)×600 , WSVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 153.6×90 mm |
| obrys | 160×101.1×1.43 mm |
| povrch | Glare (Haze 0%), Hard coating |
| hĺbka skla | 0.50+0.50 mm |
| priepustnosť | 3.5% (Typ.)(with Polarizer) |
| kontrastný pomer | 700:1 (Typ.) |
| zobraziť farby | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Doba odozvy | 10/15 (Typ.)(Tr/Td) |
| pozorovací uhol | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | LVDS (1 ch, 6/8-bit), 40 pins |
| vstupné napätie | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikácie | MP4 |
