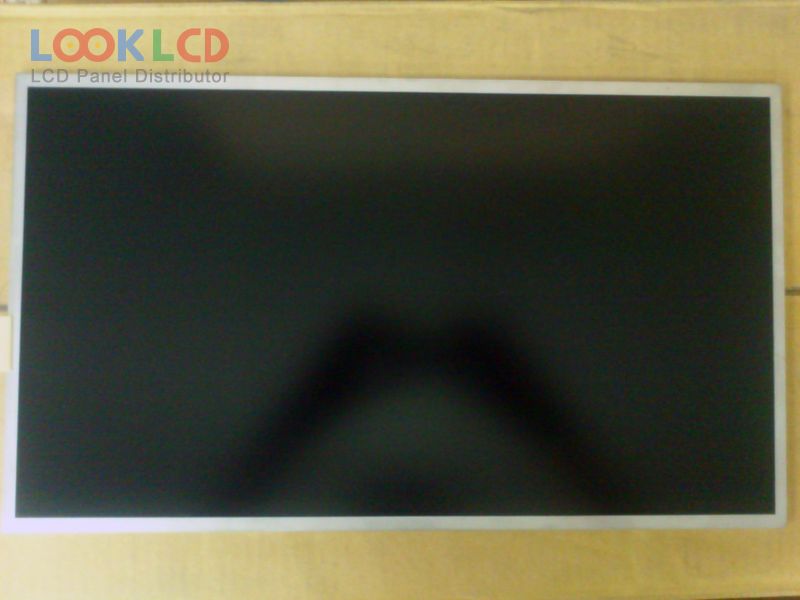

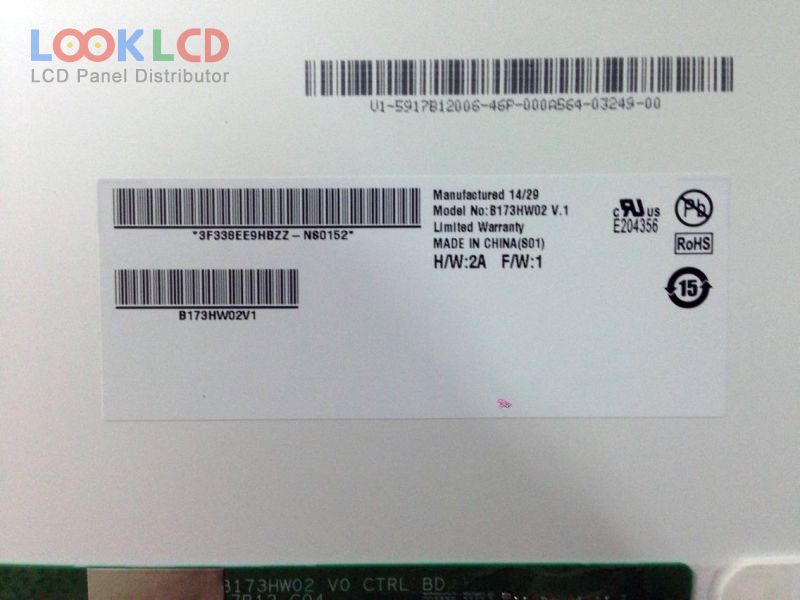

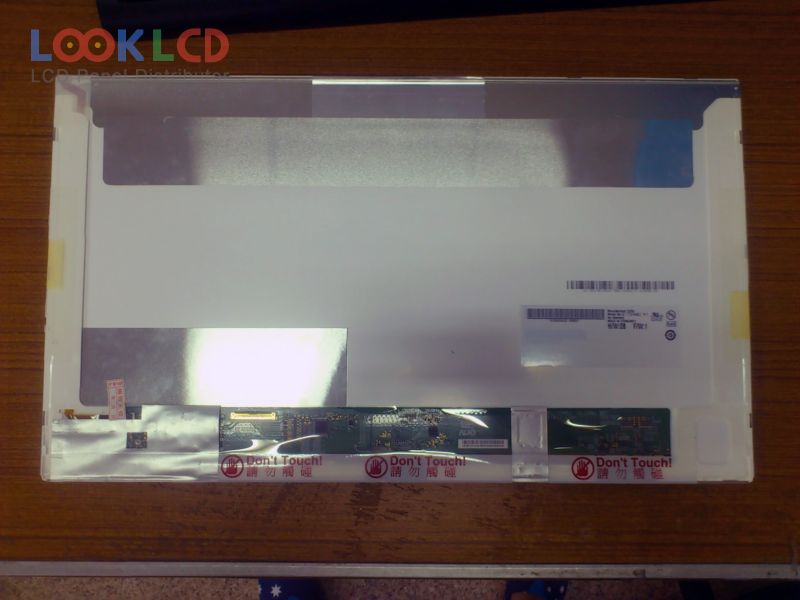

| Číslo dielu | B173HW02 V1 |
| Značka | AUO |
| Veľkosť | 17.3 |
| Aplikácia | NBPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 300 |
| CR | 400:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | B173HW02 V1 3 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 17.3 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 381.888×214.812 mm |
| obrys | 398.1×232.8×6 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Antiglare |
| jas | 300 cd/m² (Typ.) |
| kontrastný pomer | 400:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193172% |
| Doba odozvy | 8 (Typ.)(Tr+Td) |
| pozorovací uhol | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhranie | LVDS (2 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLG2 | LG Display | 17.3 | 1600×900 |
| LTN173KT01-D01 | Samsung | 17.3 | 1600×900 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| N173FGE-L21 | Innolux | 17.3 | 1600×900 |
| B170PW07 V0 | AUO | 17.0 | 1440×900 |
| CLAA156WB11A | CPT | 15.6 | 1366×768 |
| LP150X08-A3 | LG Display | 15.0 | 1024×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT28-W01 | Samsung | 14.0 | 1366×768 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
