| Číslo dielu | B156HW01 V7 |
| Značka | AUO |
| Veľkosť | 15.6 |
| Aplikácia | NBPC |
| Rozhodnutie | 1920×1080 |
| Zloženie | LCM |
| Jas | 270 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |

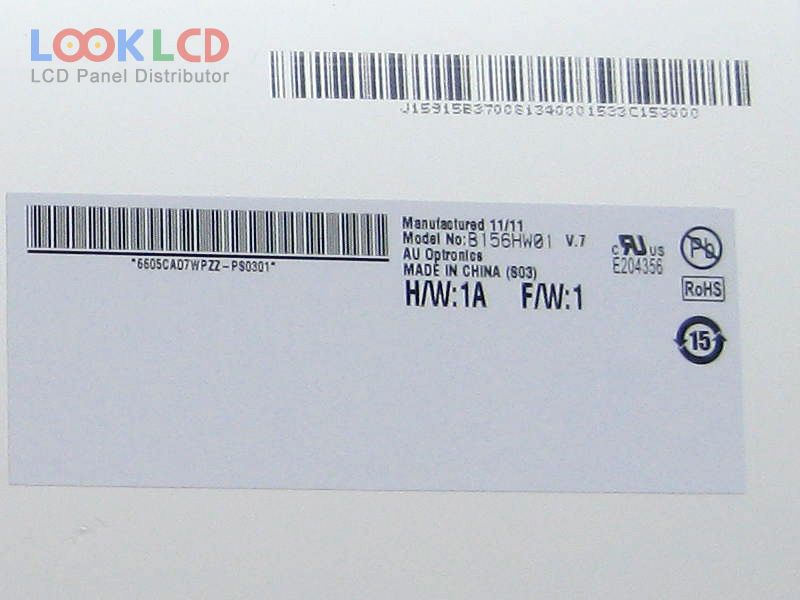

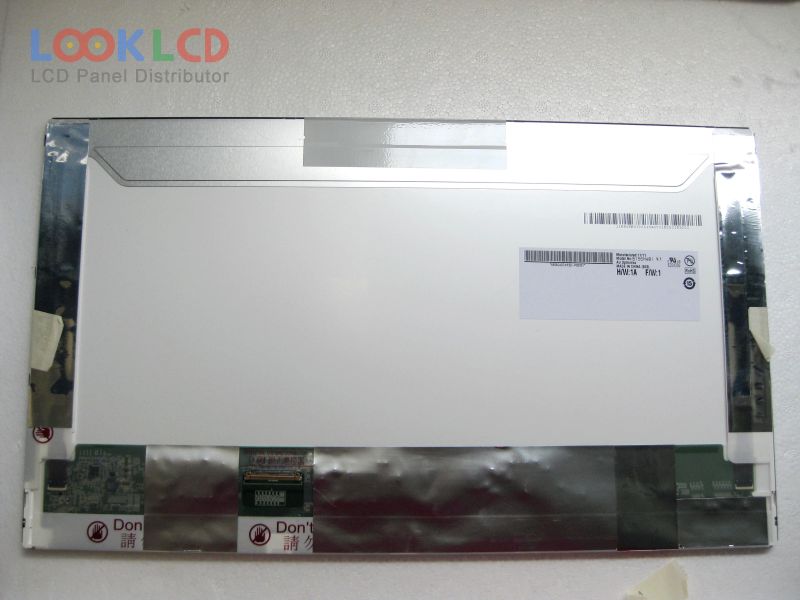

| panelový model | B156HW01 V7 20 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 15.6 inch |
| rozhodnutie | 1920(RGB)×1080 , FHD |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 344.16×193.59 mm |
| obrys | 359.3×209.5×5.7 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| jas | 270 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193195% |
| Doba odozvy | 8 (Typ.)(Tr+Td); |
| pozorovací uhol | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

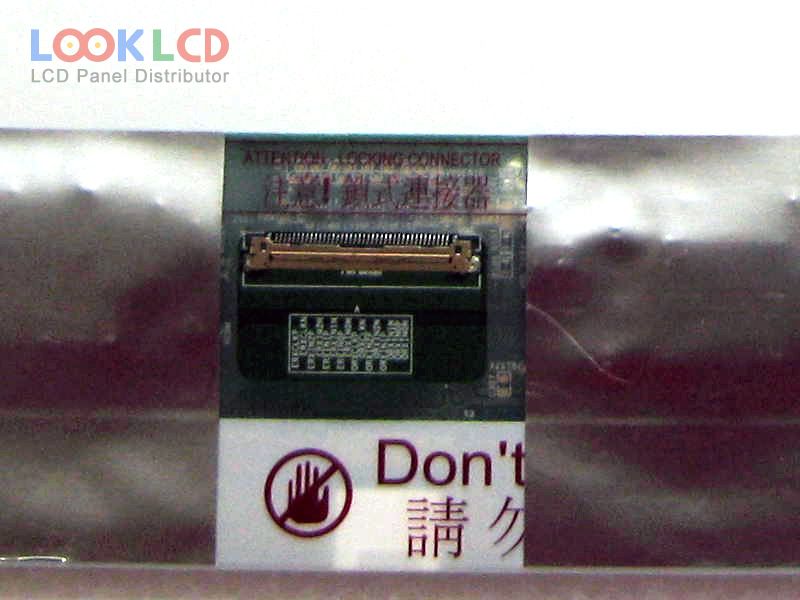

| signálové rozhranie | LVDS (2 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
