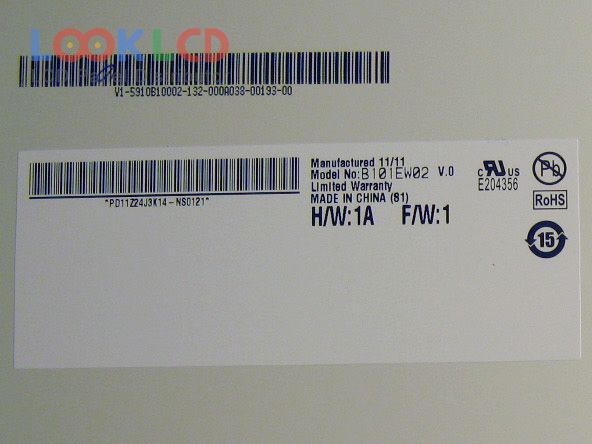

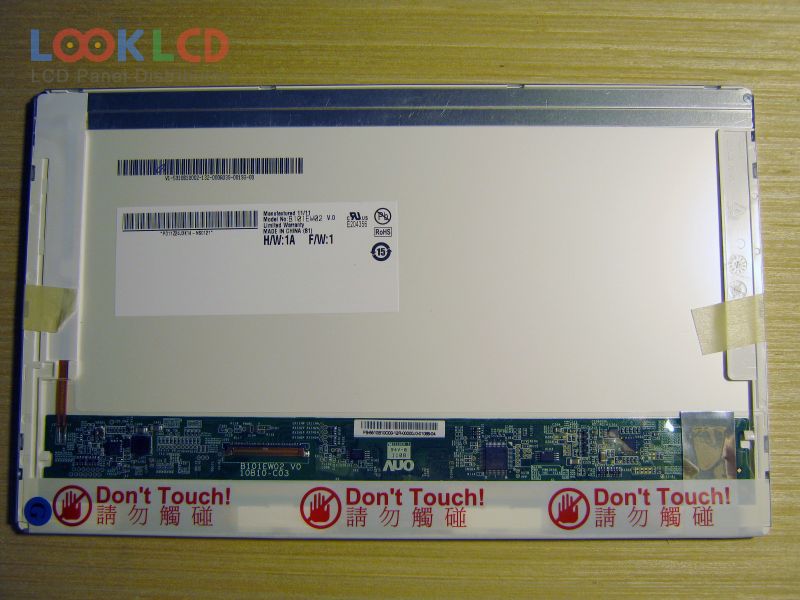

| Číslo dielu | B101EW02 V0 |
| Značka | AUO |
| Veľkosť | 10.1 |
| Aplikácia | NBPC |
| Rozhodnutie | 1280×720 |
| Zloženie | LCM |
| Jas | 200 |
| CR | 500:1 |
| Farby | 262K |
| Podsvietenie | WLED |
| Rozhranie | LVDS |
| značka panelu | AUO |
| panelový model | B101EW02 V0 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| veľkosť panelu | 10.1 inch |
| rozhodnutie | 1280(RGB)×720 , WXGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 222.72×125.28 mm |
| obrys | 235×143.2×5.2 mm |
| tvarový štýl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| povrch | Glare (Haze 0%) |
| jas | 200 cd/m² (Typ.) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 262K (6-bit), CIE193145% |
| Doba odozvy | 12/4 (Typ.)(Tr/Td) |
| pozorovací uhol | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |

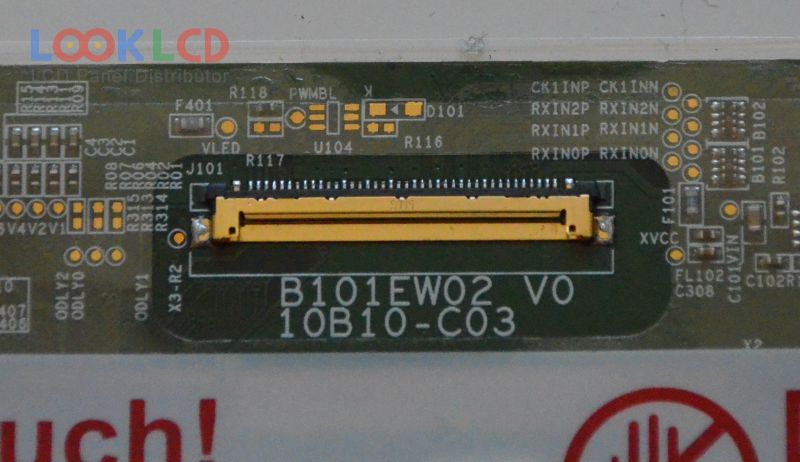

| signálové rozhranie | LVDS (1 ch, 6-bit), 40 pins |
| vstupné napätie | 3.3V (Typ.) |
| aplikácie | NBPC |
