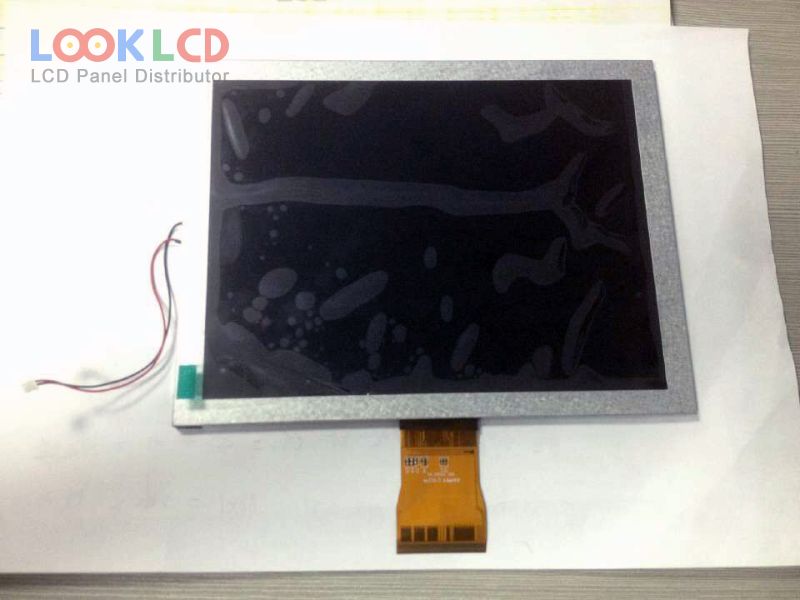

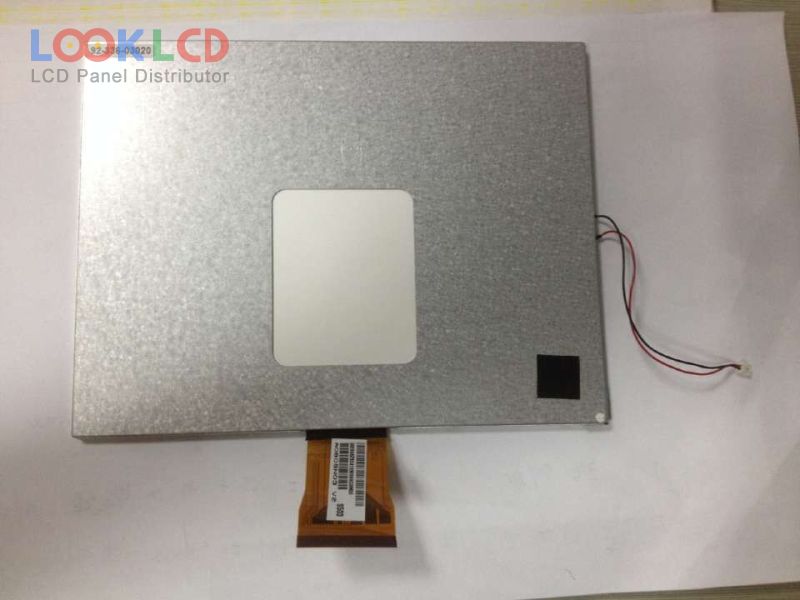

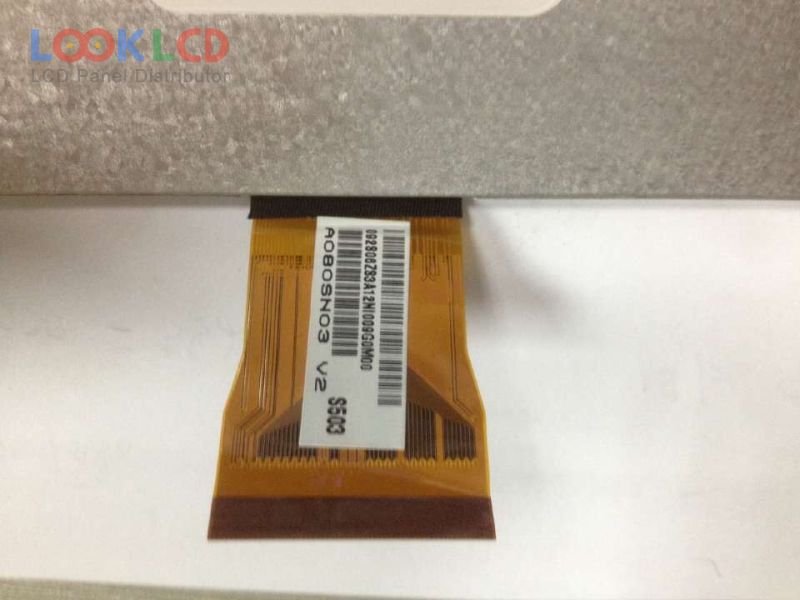

| Číslo dielu | A080SN03 V2 |
| Značka | AUO |
| Veľkosť | 8.0 |
| Aplikácia | DPF |
| Rozhodnutie | 800×600 |
| Zloženie | CELL |
| Jas | 0 |
| CR | 500:1 |
| Farby | 16.2M |
| Podsvietenie | No B/L |
| Rozhranie | TTL |
| značka panelu | AUO |
| panelový model | A080SN03 V2 |
| typ panelu | a-Si TFT-LCD , CELL |
| veľkosť panelu | 8.0 inch |
| rozhodnutie | 800×600(RGB) , SVGA |
| režim zobrazenia | TN, Normally White, Transmissive |
| aktívna oblasť | 162×121.5 mm |
| obrys | 170.1×132.3 mm |
| povrch | Antiglare, Hard coating (3H) |
| hĺbka skla | 0.50+0.50 mm |
| priepustnosť | 4.88% (Typ.)(with Polarizer) |
| kontrastný pomer | 500:1 (Typ.) |
| zobraziť farby | 16.2M (6-bit + Dithering), CIE193150% |
| Doba odozvy | 12/18 (Typ.)(Tr/Td) |
| pozorovací uhol | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencia | 60Hz |
| signálové rozhranie | TTL (1 ch, 8-bit) + SPI, 60 pins |
| vstupné napätie | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) |
| aplikácie | DPF |
